Model

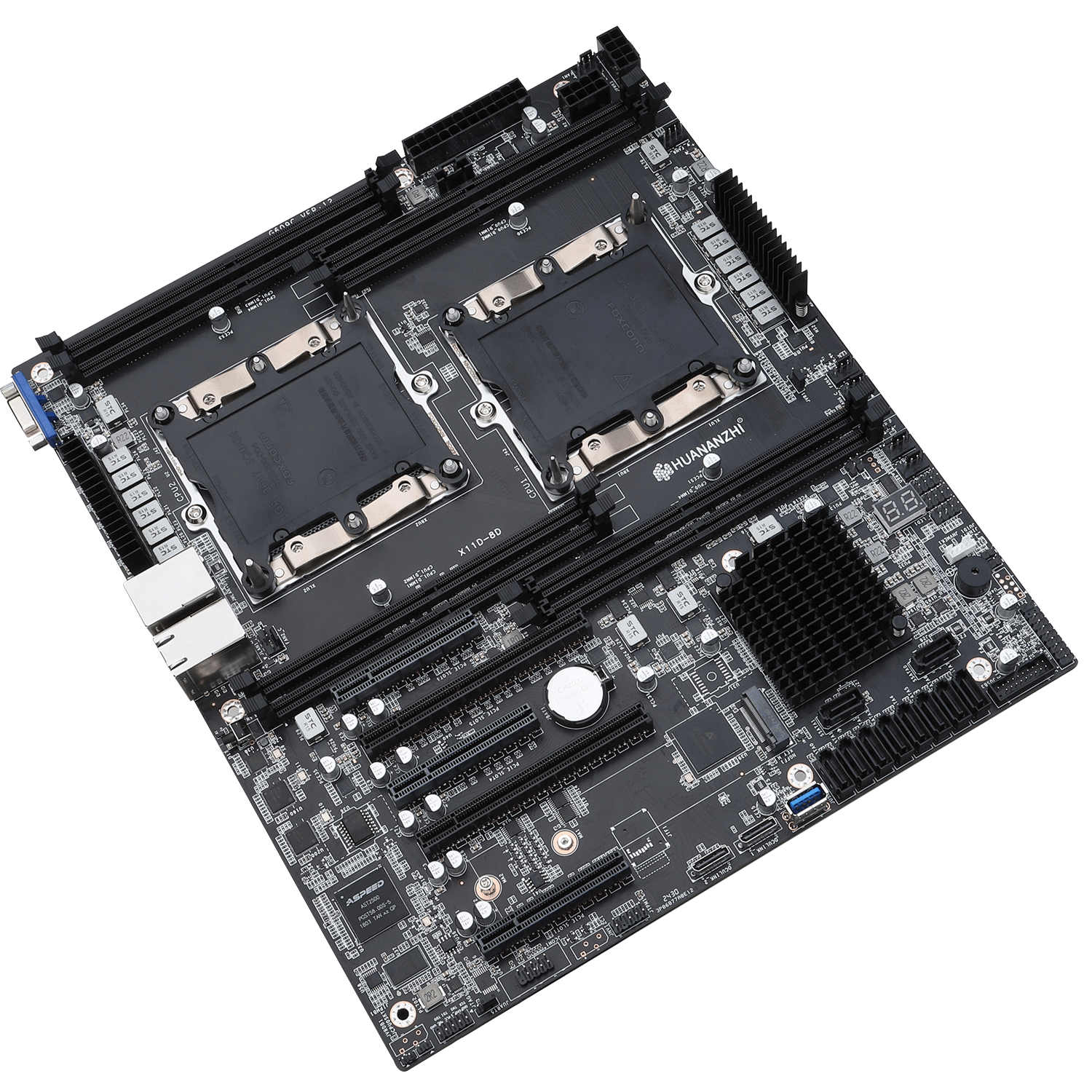

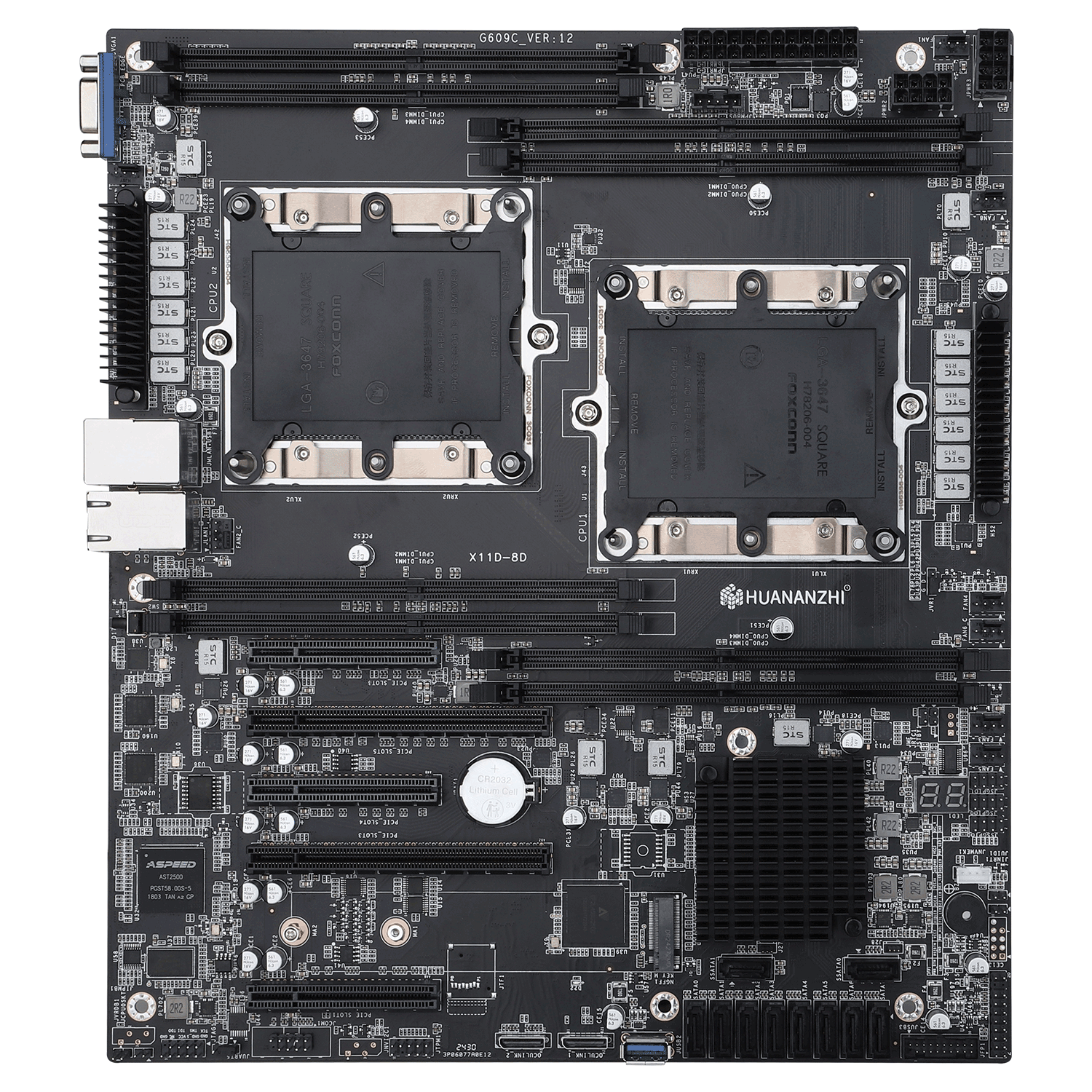

HUANANZHI X11D-8D DUAL Motherboard

Main chipset

Intel C621

CPU Socket

Support lntel LGA3647，Supports Intel Xeon first and second generation dual processors

Memory slot

8 x DDR4 memory slot

Memory standard

Support single processor four channel DDR4 2933/2666/2400/2133MHz，Max support1TB

Storage interface

10xSATA3.0 interfaces

Expansion Slots

2xPCI Express3.0X16，3xPCIExpress3.0x8

Expansion interface

1x M.2 2280 NVME PCIE X4 3.0，2xOCULink PCIE3.0x4

Soud Track

/

Network Card

2xIntel I210 Gigabit Ethernet Port，1xIPMI remote management port Ruiyu RTL8211E

Power interface

24PIN+8PIN+8PIN

FAN PIN

8xFAN PIN

power supply

6+6-phase power supply

PCB layers

16-layer PCB

Dimension

305 * 265 MM 12" x 10.5" SSI SEB (ATX)

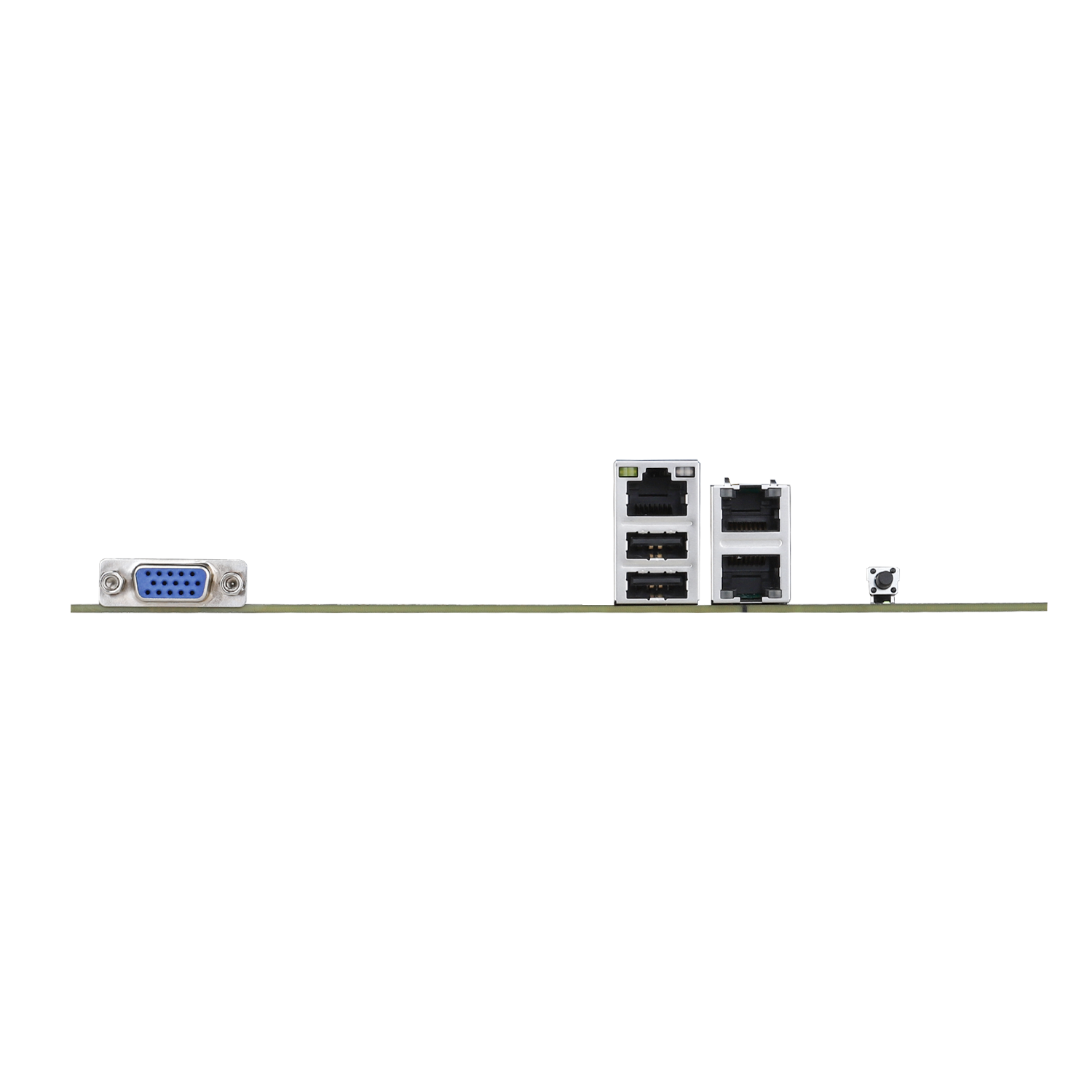

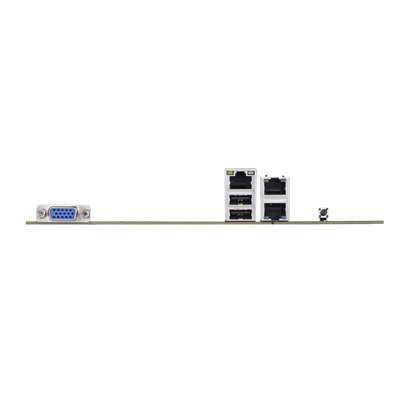

Rear panel interface

2xUSB2.0，2x RJ45 Network card interface，1xRJ45 Management interface，1xVGA

Front panel interface

1 x USB2.0 pin，1 x USB3.0 pin，1 x USB3.0，1 x TPM pin，1 x COM pin，1xMotherboard buzzer，

1 x JPMBUS pin，1 x JVR1 pin，1 x JSTBY1 pin， 1 xJINTR1 pin，1 x JRTC1 pin，1 x JSTBY1 pin，1 x JINRT1 pin，1 x JUID1 pin，

1x JME pin，1 x JRTC1 pin，1 x JNVMEK1 pin，1 x JVRDB1 pin，1 x JCPUOSKT pin，1 x JTAG1T pin，1 x JUART5 pin，1 x JFP1 pin

Management Headquarters

ASPEED AST2500 (BMC）Support IPMI2.0

Support system

Windows

BIOS

AMI UEFI BIOS

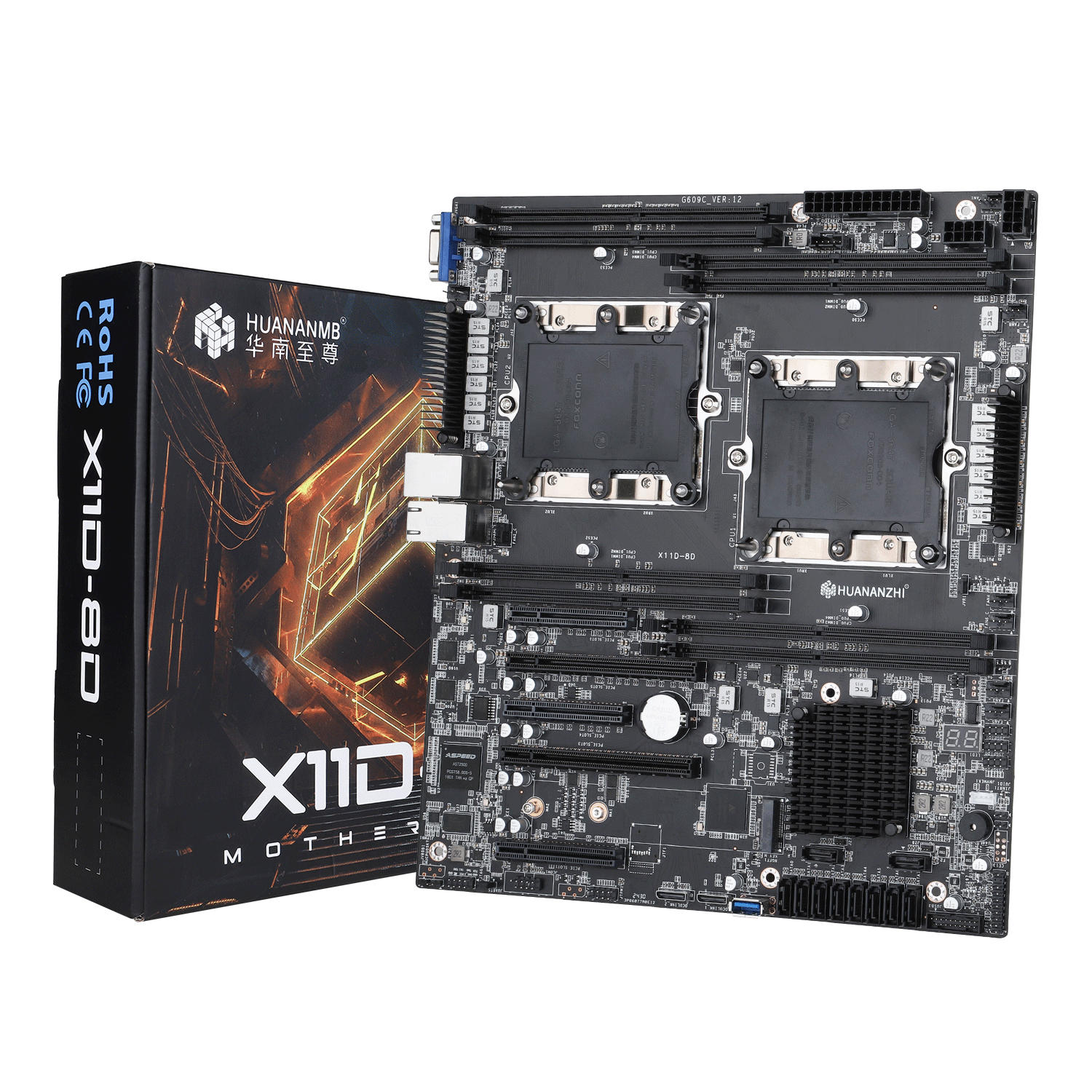

Packing list

1 x Motherboard，1x SATA data cable，1xWarranty card
